YOELEO R12 DB Disc Brake Carbon Frameset
-
Detail
Frameset: R12 Frame+Fork+Handlebar+Seatpost
Frame Sizes: 43cm,47cm,50cm,52cm,54cm,56cm,59cm
Handlebar Size: 380mm,400mm,420mm,440mm
Stem Size: 90mm/100mm/110mm/120mm
Material: High Modulus Toray 800 Carbon Fiber
Color: Baltic Red / Hemidium / Crimson Black / Arctic Yellow / Blue Spectrum / Golden Apache / Misty Rose / Chameleon
Carbon Weave: UD
Groupset Compatible: Machine and Di2 compatible
BB: BB386
Rear Dropout: 12*142 Thru Axle
Rear derailleur hanger: Replaceable
Headtube: 1-1/2” Straight
Fork: Aero Disc Brake Fork, Flat Mount, 12*100 Thru Axle
Fork Offset: 45˚
Brake: Flat Mount Disc Brake
Max Tire Width: 32mm
Cable: Internal cable
Frame Weight: 950g(50cm)
Fork Weight: 390g
Accessories: Handlebar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing Cap 10mm: 1PC
Front Axle 1PC, Rear Axle 1PC
Limited Rider Weight: 110KG
Warranty: 3 Years
Certification: UCI Approved

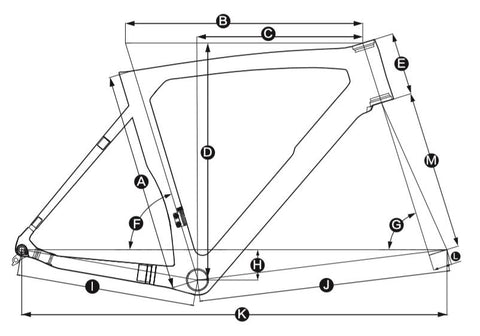

Geometry:
Size Dimension A B C D E F G H I J K L M 43CM 430 505 370.6 501.6 100 75° 70.5° 72 415 572.9 977 43 371 47CM 450 516 375.9 505 100 74.5° 71.5° 72 415 570.7 974.8 43 371 50CM 470 528 378.6 520.9 115 74° 72° 72 415 574.2 978.3 43 371 52CM 490 540 381 536.9 130 73.5° 72.5° 72 415 577.1 981.3 43 371 54cm 510 552 386 550 145.7 73° 73° 72 415 583.5 987.6 43 371 56CM 530 567 388.2 567.2 160 72.5° 73° 72 415 588.9 993.2 43 371 59CM 560 582 393 581.6 175 72° 73° 72 415 598.1 1002.4 43 371 Sizing & Fit:
The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit.
That’s why you’ll see some overlap in our recommendations.
Size
XXS
43CMXS
47CMS
50CMM
52CML
54CMXL
56CMXXL
59CMRider Height
155-163CM
160-168CM
165-173CM
170-178CM
175-183CM
180-188CM
185-193CM
-
Customer Reviews
Al****D
I bought some Chinese frames before that were all OK on their own, but none of them really WOW'ed me. This R12 is amazing, very smooth and endurance, and also racing-oriented. I chose Arctic Yellow, I heard these are new colors which released by Yoeleo, and my next frame will be definitely Yoeleo's.
Pi*****Y.
So pleased that I purchased this bike, stunning painting job. The baltic red looks much better than their website pictures. And this bike is a good option for the value-focused rider, the Yoeleo R12 brings some high-end features to the entry-level price point. The carbon frame paired with disc brakes and internal cable routing makes for a lightweight and versatile bike that's built to perform in all conditions, which it does relatively well. My bike rides as smoothly as any modern carbon bike. It is stiff enough to be responsive and predictable under power, yet the material absorbs plenty of unwanted road noise both on good tarmac and off. The disc brakes inspire its rider to push the limits a bit on the descents, knowing there is plenty of stopping power to catch any slips or mistakes in line choice. The slightly slack head angle (as compared to a more traditional race bike) fit well with that design, providing a bit more leniency and comfort at speed.
