YOELEO R11 DB Disc Brake Carbon Frameset

WISHLIST
The R11 is super lightweight at just *850grms for the frame and 390grm for the fork (*size 54cm). This stiff and responsive frame means that with every pedal stroke your energy is transferred directly on to the ground, which is exactly where you want it. With fast handling for the descent, it makes the perfect partner. The only thing left to do is to see which hill you want to climb next.
Quantity
ADD TO CART
  • Detail

    Frameset: R11 Frame+Fork+Handlebar+Seatpost

    Sizes:  49cm,52cm,54cm,56cm,59cm

    Handlebar Size: 380mm,400mm,420mm,440mm

    Stem Size: 90mm/100mm/110mm/120mm

    Material: High Modulus Toray T1000 Carbon Fiber

    Color: Chromatic Grey / Baltic Red /  Snowfrost White/ Blue Spectrum / Pink Opal / Chameleon

    Carbon Weave: UD

    Groupset Compatible: Machine and Di2 compatible

    BB: BB86

    Rear Dropout: 12*142 Thru Axle

    Rear derailleur hanger: Replaceable

    Headtube: 1-1/2” Straight

    Fork: Aero Disc Brake Fork,Flat Mount,12*100 Thru Axle

    Fork Offset: 45˚

    Brake: Flat Mount Disc Brake

    Max Tire Width: 32mm

    Cable: Internal cable

    Frame Weight: 900g+/-30g (54cm) (unpainted)

    Fork Weight: 390+/-15g

    Seatpost Weight: 204g+/-30g

    Accessories: Handlebar Spacers 3mm: 1PC, 5mm: 1PC, 10mm: 2PCS, Headset Bearing   Cap 10mm: 1PC

                          Front Axle: 1 PC, Rear Axle: 1 PC

                          Di2 Cover: 2PCS

    Limited Rider Weight: 105KG

    Warranty: 3 Years

    Certification: UCI Approved

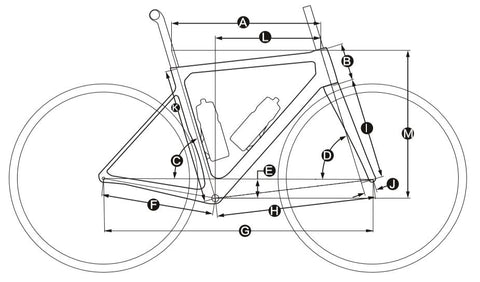

    Geometry:



    Size Dimension L
    Reach    		 M
    Stack    		 A
    Top Tube Length    		 B
    Head Tube Length    		 C
    Seat Tube Angle    		 D
    Head Tube Angle    		 E
    BB Drop    		 F
    Chain Stay    		 G
    Wheel Base    		 H
    BB to Front Wheel    		 I
    Fork Length    		 J
    Fork Rake    		 K
    Seat Tube Length
    49CM 373 514 520 110 74° 72.5° 69 410 965
  • Customer Reviews
    B***W.

    Quick update on the previous review—the finished weight as shown (nothing too expensive here) is 8.25 kg. Not bad at all for 105/Grx mix, least expensive shimano chain, ican wheelset—all stuff I had on hand for the most part. 32c GravelKing SK tires on, good clearance. My (sort of) lightweight gravel climber. Stiff climbs great, and is not too bad on the descents either. Compares very well in weight to something like a Canyon Endurace with Ultegra groupset. And a good-looking bike IMO.

    D**

    My R11 disc is in brilliant Chameleon paint. It's light, fast, stiff yet compliant & handles well. Highly recommended for those who want a good quality carbon frame with T1000 carbon, TUV certification & warranty but are not too fussed about the brand name. For me, if the frame came with a BB386, it will be perfect! Thus far, dealing with their staff has been prompt & helpful. Highly recommended.

    R***rd

    My custom R11 Disc size 52. It has perfect handling and a nice design. What a great bike. The price quality ratio is exceptional.
